TT Lock Smart Core with Key /WIFI Smart Core / Remote door Core/Bluetooth Core for Lock Replacement/Smart Locks Core
Quickly specicification
Smart core with key
Material: Brass, SUS304 , ABS
Anti-picking covers, 5keys,
Door thickness Range:45-90mm
Power supply:3*LR1 AM5 Size N 1.5V
Working voltage: DC4.5v
Working temperature: -4 ℉(-20℃)~131℉ (55℃)
Working humidity 5%~93% RH
Remind under low voltage: DC 3.3V
Wireless connection: Zigbee
Advae
An e-cylinder with mechanical and electrical integration feature(Anti-picking)
Patented technology ensures security
Easy installment / upgrade on existing lock(keep your existing lockset)
Add-in smart chip ensures no duplication
Connected with Tuya Smart home system or TT Lock App system
An upgrade on existing lock perfect for vacation rentals, open houses and etc.
Save money and time on cylinder replacement due to loss/unreturned guest keys
Pre-authorized key for real estate agent to use at agreed upon time periods
Built in alarm system to remind you don't leave your key behind
Each key can be turned "on" and " off" using your smart phone
Safe to keep back up keys to neighbors and trusties who live near you
Keep your safety on the temporary housing / short term leasing situations
E-cylinder can be disassembled and re-installed as desired
Existing lock will not be harmed during installation and disassembly process
Provide timed electrion keys to others freely like pet feeding/housekeeping/property maintenance
Get alert and check the record for each key's usage
E-cylinder ensures security
Mechanical and electrical integration with encrypted chip- Double assurance + side bar technology with burglar-proof smart chilp
Smart chip encrypted with 128-bit bidirectional combinations.
Far exceed existing mechanical lock industrial standards
Security- Aheart-warming gift for you and your lover
Pre-authorized key for different purposes with real-time supervision

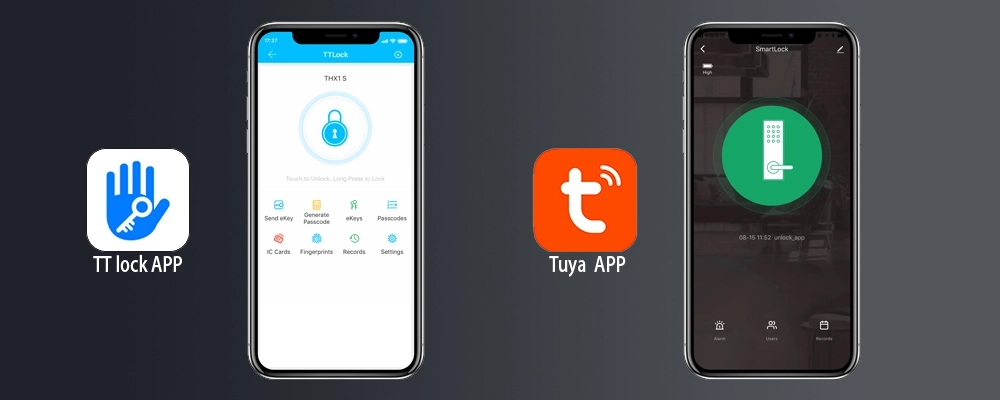

Manage through Tuya smart home APP or TT Lock App
Add, delete, reort loss, reauthorize key at any time
Set "on" time period for each key (only during "on" period the key can be used to unlock) to reduce potential security risks.
Each user's record can be accessed through the APP in the daily log sector
In an unauthorized/burglary situation
Built -in alarm system will initiate, break-in alert will be sent to owner's smart phone
Keep your family safe on multilevel with the help of other Tuya smart home system products.
Low power consumption
The smart cores are designed with Eco-friendly concept
Battery life up to 10-12 months, replace battery only when notification is received
In cause of low battery, the E-cylinder still remains as a perfectly functional mechanical lock
Your safety is our priority concern
Built -in 128 bit encode-chip
Unique code for each chip
Key can not be duplicated
Key with an unique code
One on one rivate service
Safe and systematic key-making rocess
*** when the key is accidentaily lost, you must provide the code inside the product packaging to make new copies of the key.
More details
High end material Nickel silver
Top quality brass Gold-immersed contact
Stainless steel SUS304
ABS knob, suitable four seasons of the year
Multicolor-keys, easy for user indetification and management
The beginning of smart living
As a new member of Tuya smart home system, connect with other smart home device through Tuya App and TT Lock App,
realizing your vision of a true intelligent home
How to determine if it is suitable for your home installation?
Check the shape of your existing keyhole. Two shapes as figure are compatible for consultation.
产品标题
The sound beeps manual
| No. | Sound | operation | Indication |
| 1 | 1 beep | Insert key | Unlocking |
| 2 | 1 beep | Insert unregistered key in key addition mode | Successful addition |
| 3 | 1 beep | Replace battery | Power on |
| 4 | 2 beeps | Press blue botton to register the key under local mode | Enter the key additon mode |
| 5 | 3 beeps | Press blue button to exit the key addition mode | Exit the key addition mode |
| 6 | beeps | Insert the registered key under the key addition mode | Refuse registered key |
| 7 | continuing short beeps (Alarm mode) | All illegal operation | Alert illegal operation |
| 8 | 1 long beep | Long press blue button for five seconds | Delete all registered keys |
| 9 | 6 long beeps | Unlock under low voltage | Replace batteries with low power |
| 10 | 30 beeps | Forget to take out of the key | Remind you to take out the key |
Specification
| Standards | GB16796-2009; Q/WM001-2016 |
| Materials | Stainless steel SUS304 , Brass, nickel-silver, ABS |
| Accessories | 5 keys, anti-picking covers, two long screws, warranty card, manual |
| Wireless connection | Zigbee |
| Max registered-key quantities | 20pcs |
| Door thickness Range | 45~90mm |
| Power supply | 3* LR1 AM5 Size N 1.5V |
| Working voltage | DC 4.5V |
| Working temperature | -4 ℉(-20℃ ) ~131℉(55℃ ) |
| Working humidity | 5% ~93% RH |
| Remind under low voltage | DC 3.3V |
| Weight with package | 750g to 850g |
| Package Size | 225*155*50mm |
| Guarantee | one year |
Installation drawing
Warranty
1. The product shall be returned or exchanged if can't installed within 7 days of receiving and the product can be resaled.
2. Within 12 months of receiving the product, free maintenance services can be provided for the products with quality issue.
Warranty services will not include the following:
1. Unauthorized maintenance, misuse, collision, negligence,misuse and injection, oil inlet, acci-dent, modification,incorrect use of non-product parts
2. Warranty period expired
3. Damage caused by force majeure
